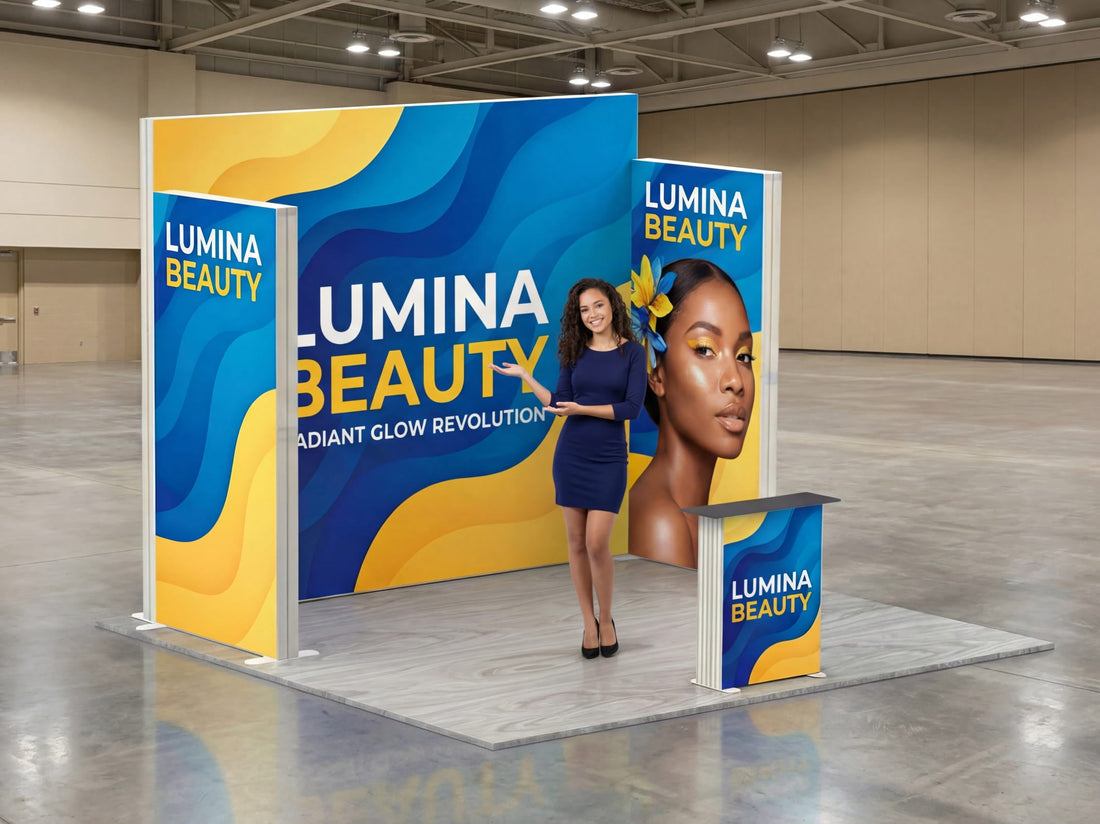

SEG Lightbox Display Setup Guide: Assembly Steps, Tools, Power, Graphics, and Common Mistakes
You don’t usually realize how important setup is until you’re standing in a booth space with a half-built display, a show opening in two hours, and someone asking where the power cable went.
Honestly, this is where a lot of trade show stress starts. The display looked simple online. The rendering looked clean. The graphics looked bright. But then setup day arrives and the team has to figure out the frame, fabric, LED placement, power connection, and final graphic tension while the aisle is full of crates, carpet installers, electricians, and other exhibitors doing the same thing.
An SEG lightbox display can look incredible when it’s installed correctly. The frame gives structure, the silicone edge graphic creates a clean flush finish, and the LED lighting helps the booth stand out from the aisle. But if the graphic is rushed, the frame isn’t square, or the lights aren’t tested before the show opens, the display can look uneven, dim, wrinkled, or unfinished.
That’s why setup matters almost as much as the display itself.
At PrintDrill, we work with exhibitors who need portable displays that look professional without turning setup day into a construction project. This guide walks through how to assemble an SEG lightbox display, what tools you may or may not need, how many people should set it up, how long it usually takes, how to install the fabric graphic, how to connect lights, and what mistakes to avoid before your booth goes live.
TL;DR
- An SEG lightbox display is a backlit aluminum frame with LED lighting and a fabric graphic that has silicone edging sewn around the perimeter.
- Most portable SEG lightboxes are designed for tool-free or minimal-tool assembly, but larger modular booths may require basic tools, connectors, or hardware checks.
- For a 10 ft lightbox, two people are usually the safest and fastest setup option, even if one experienced person can sometimes handle smaller displays.
- Setup time usually depends on size, lighting, frame style, and team experience. A simple 10 ft display may take about 20–45 minutes, while larger SEG booth structures can take longer.
- The biggest setup mistakes are rushing the frame alignment, installing the fabric unevenly, forgetting to test the lights, and not confirming booth power before the event.
What is an SEG lightbox display, and how does the setup actually work?
An SEG lightbox display is a display frame, usually aluminum, that holds a printed fabric graphic using silicone edge graphics. The silicone strip is sewn into the edge of the fabric print. During setup, that strip is pressed into a channel around the frame, which creates a smooth, clean, tensioned graphic face.
The lightbox part comes from LED lights installed inside or along the frame. When powered, the LEDs shine through the backlit fabric, making the graphic brighter and more visible than a standard fabric backdrop. If you’ve ever walked a trade show floor, you’ve probably seen how backlit displays catch your eye before flat displays do. That’s the whole point.
For most exhibitors, setup follows a simple order:
- Unpack and inspect the frame, graphic, lights, and power components.
- Assemble the aluminum frame on the floor or upright, depending on size.
- Install or check the LED lighting inside the frame.
- Connect the power supply and test the lights before installing the graphic fully.
- Insert the SEG fabric graphic into the frame channel.
- Stand the display in position and adjust the fabric tension.
- Do a final aisle-view check before the show opens.
The setup is not complicated, but it does need the right sequence. Most people run into trouble when they treat the fabric graphic like a regular banner. SEG graphics are not meant to be clipped, taped, stretched with bungees, or loosely draped. They need to be pressed into the frame evenly so the silicone edge sits inside the channel all the way around.
If you’re comparing this to a standard backdrop, a pillow case tension fabric backdrop may be faster for basic indoor use because it doesn’t involve lights or power. An SEG lightbox takes more setup care, but it gives you a brighter, more premium booth presence.
Here’s the simple way to think about it. A standard fabric backdrop is mostly frame plus fabric. An SEG lightbox is frame plus fabric plus lighting plus power. That extra layer is what creates the visual impact, but it’s also what you need to plan for.
What tools are required to assemble an SEG lightbox display?
A lot of people ask if SEG lightboxes require tools. The honest answer is, it depends on the model. Many portable SEG lightbox displays are designed to be tool-free or mostly tool-free. That means the frame sections connect with push buttons, snap locks, corner connectors, or pre-attached hardware. For simple displays, you may not need much more than your hands and the included parts.
That said, “tool-free” doesn’t mean “no preparation.” It just means the core frame is designed to assemble without heavy tools. You still need to keep track of power cables, transformers, LED connectors, support feet, stabilizers, and sometimes small screws or brackets depending on the display size.
| SEG setup item | Usually needed? | Why it matters |
|---|---|---|
| Allen key or hex wrench | Sometimes | Some frame corners, stabilizer feet, or modular connectors may use small bolts. |
| Screwdriver | Sometimes | Useful for checking brackets or tightening small hardware if included. |
| Gloves | Recommended | Helps keep fabric graphics clean and protects hands during frame handling. |
| Step stool | Recommended for tall displays | Makes top-edge graphic installation easier and safer. |
| Clean cloth | Recommended | Helps wipe fingerprints from the frame and clean minor dust before photography. |
| Power strip or extension cord | Often needed | Booth outlets are not always placed exactly where your lightbox sits. |
| Replacement hardware pouch | Recommended | Extra screws, connectors, clips, or adapters can save setup day if something is missing. |
Pro Tip: Keep a small “show setup kit” inside your booth case. Include gloves, a microfiber cloth, a labeled power cable, a small screwdriver, an Allen key set, extra hardware, painter’s tape, zip ties, and a printed setup checklist. Most setup problems are small, but they feel big when you’re already on the floor.
For powered displays, electrical safety is part of setup too. OSHA notes that portable cord-connected equipment and flexible cord sets should be visually inspected before use for defects, such as damaged insulation or loose parts. You can review OSHA’s guidance on use of electrical equipment before planning booth power.
Also, remember that the venue’s electrical rules matter. A lightbox may plug into a standard power source, but the booth may still require ordering electrical service through the event contractor. If your booth package includes a lightbox, counter lights, monitors, chargers, and a laptop station, don’t assume one outlet will cover everything.
How many people are needed to set up an SEG lightbox display?
For most 10 ft SEG lightbox displays, two people are the practical answer. One person can sometimes assemble a smaller portable display, especially if they’ve done it before. But once you add height, lighting, fabric tension, and booth traffic around you, two people make the setup cleaner and safer.
The thing is, SEG graphics need even pressure. If one person is working alone, they often press one corner in tightly, then fight the opposite side because the fabric is already pulling unevenly. With two people, one can hold the frame steady while the other installs the graphic. Or both can work from opposite corners and keep the tension balanced.
| Display type | Recommended people | Typical setup time | Notes |
|---|---|---|---|
| Small tabletop or narrow SEG frame | 1 person | 10–20 minutes | Usually manageable if the frame is lightweight and the graphic is small. |
| 10 ft SEG lightbox display | 2 people | 20–45 minutes | Two people help with frame alignment, graphic tension, and standing the display. |
| 13 ft to 20 ft SEG display | 2–3 people | 45–90 minutes | Longer frames need more careful handling so corners and connectors stay square. |
| SEG modular booth with returns or side walls | 2–4 people | 1–3 hours | Setup depends on booth layout, number of graphics, lighting zones, and accessories. |
These are practical estimates, not hard rules. An experienced team can move faster. A first-time team should give itself extra time, especially at the first event. Most people don’t notice this until setup day, but figuring out the parts takes longer than actually connecting them.
If you’re using a larger SEG modular lightbox booth, don’t treat it like a simple backdrop. A booth kit may include multiple frames, graphics, connectors, power supplies, and layout-specific parts. The more walls and lighted surfaces you have, the more important it becomes to stage the parts before assembly.
How long does it take to assemble an SEG booth or lightbox?
Setup time depends on four things: the size of the display, the number of lighted sections, the number of people, and whether the team has practiced before. A simple 10 ft lightbox may feel straightforward after one or two setups. The first time, though, you should expect some extra time for unpacking, checking parts, reading instructions, and understanding how the graphic fits.
Here’s what we’ve seen after hundreds of booth conversations. The display itself usually isn’t the slowest part. The slow part is the small uncertainty around it. Which frame piece goes where? Which cable connects to which light strip? Where is the outlet? Which side of the fabric is the front? Should the graphic go in before the frame is upright or after?
That’s why a setup rehearsal helps so much. Even a 20-minute test assembly at your office can save serious stress at the venue.
PrintDrill’s Booth Setup Time Reality Check
Use this framework before you promise your team, “We’ll set it up quickly.” It gives you a more realistic view of the total setup window, not just the frame assembly time.
| Setup stage | Simple 10 ft lightbox | Larger SEG booth | What usually slows it down |
|---|---|---|---|
| Unpacking and sorting parts | 5–10 minutes | 15–30 minutes | Unlabeled parts, missing hardware pouch, mixed graphics. |
| Frame assembly | 10–20 minutes | 30–90 minutes | Wrong corner order, uneven floor, connectors not fully seated. |
| Lighting and power test | 5–10 minutes | 15–30 minutes | Outlet not ready, cable hidden in case, loose LED connector. |
| Graphic installation | 10–15 minutes | 20–45 minutes | Starting from one side only, wrinkles, fabric installed upside down. |
| Final positioning and aisle check | 5 minutes | 10–20 minutes | Display too close to table, blocked message, poor viewing angle. |
If this is your first show with a lightbox, plan more time than the product page estimate. Not because the setup is difficult, but because real venues create distractions. Someone may need your badge. The electrician may not be finished. Your carpet may arrive late. Your boxes may be behind another crate. Build in breathing room.
The CEIR Index is a helpful reminder that exhibitions are active, complex environments with many moving parts. When attendance, exhibitor participation, and show activity increase, the setup floor gets busier too. A clean setup plan helps you stay calm while everyone else is rushing.
How do you install SEG fabric graphics correctly?
Installing the fabric graphic is the step that makes or breaks the final look. A good print can still look wrong if it’s installed unevenly. This is where things usually go wrong. One corner gets pushed in too deeply, the opposite corner starts pulling, and then the graphic looks twisted or wrinkled even though the fabric itself is fine.
The best method is to start with the corners first, then work toward the center of each side. This keeps the fabric balanced across the frame. Don’t start at the top left and work all the way around like you’re closing a zipper. That usually creates tension problems by the time you reach the last side.
- Lay the graphic out with clean hands or gloves.
- Confirm the front side and orientation before inserting anything.
- Press the silicone edge into all four corners first.
- Insert the center point of each side next.
- Work from the corners and centers toward the remaining open sections.
- Smooth the fabric gently as you go.
- Step back and check for diagonal wrinkles or uneven tension.
For large lightboxes, one person should hold or guide the fabric while the other presses the silicone edge into the channel. If the fabric feels too tight, don’t yank it. Check whether the frame is fully assembled and square. A slightly misaligned frame can make a correctly sized graphic feel wrong.
If-Then graphic installation rules
- If the graphic looks loose in one area, check whether the silicone edge is fully seated in that section.
- If the graphic has diagonal wrinkles, remove part of the fabric and reinstall from the corners evenly.
- If the graphic feels too tight, check the frame corners before assuming the print is incorrect.
- If the image looks dull when lit, confirm the fabric is backlit material and the LEDs are facing the correct direction.
- If the graphic is upside down, stop early and reset. Don’t force the remaining edges just to finish faster.
If you plan to change campaigns often, SEG graphics are useful because the frame can usually be reused while the fabric graphic is replaced. Based on common PrintDrill customer use cases, many exhibitors keep the hardware and update graphics every 12–18 months, or sooner when their messaging, product line, or event theme changes.
That’s one reason SEG systems are popular for growing brands. You’re not throwing away the full display every time the campaign changes. You’re mostly updating the visual surface.
How do you connect the lights and power safely?
Connecting the lights is usually simple, but it deserves attention. A lightbox display may use internal LED strips, edge lighting, or pre-mounted lighting panels depending on the product design. The power supply or transformer connects the LEDs to the booth power source. Some displays have one main power connection. Larger displays may have multiple lighting zones or more than one power supply.
Before installing the fabric graphic fully, test the lights. This is one of the easiest setup habits and one of the most commonly skipped. If a connector is loose or a power supply isn’t plugged in, it’s much easier to fix while the frame is open.
For electrical planning, the National Electrical Code from NFPA is the benchmark electrical safety standard used across many installation settings. For trade shows, your venue and show contractor will usually provide specific rules for booth power, extension cords, outlet placement, and approved electrical work. Always follow the event manual first.
| Power item | What to check | Why it matters |
|---|---|---|
| Outlet location | Confirm where the venue will place booth power. | Your lightbox may need to sit near a wall, backline, or ordered electrical drop. |
| Voltage and plug type | Check the display’s power supply label and event power options. | Most portable displays are simple plug-in systems, but assumptions cause problems. |
| Wattage load | Add up lightbox, monitor, laptop, chargers, and other powered items. | One booth outlet may not be enough for everything. |
| Cord routing | Keep cords away from walkways and pinch points. | Bad cord placement creates trip hazards and can damage cables. |
| Connector security | Check that LED connectors are fully seated before closing the frame. | A loose connector can create dark sections after the graphic is installed. |
| Final light test | Turn lights on before the graphic is fully tensioned. | It’s easier to fix dark spots before the fabric is fully installed. |
OSHA’s wiring guidance also notes that temporary wiring should be removed after its temporary purpose is complete. You can review OSHA’s wiring methods and temporary wiring rules for broader workplace safety context. For trade show exhibitors, the practical version is simple. Use the right cords, inspect them, avoid damage, and follow the venue’s electrical rules.
Don’t hide messy electrical planning behind the display. If something has to be unplugged quickly, your team should know where the connection is. Labeling the lightbox power cable helps too, especially if you also have monitors, chargers, counters, and demo equipment plugged in nearby.
What accessories are needed for SEG lightbox setup?
Most SEG lightbox displays include the main frame, printed fabric graphic, LEDs, power supply, and a carry case or shipping case. But the accessories you bring can decide whether setup feels smooth or frustrating. The display may be complete, but the booth environment may still need extra support.
For example, if your outlet is placed behind the wrong side of the booth, you may need an approved extension cord. If your team is shorter, you may need a step stool for the top edge. If your booth floor is uneven, stabilizer feet become more important. If your graphic is packed tightly, gloves and clean handling matter because backlit fabric can show smudges when illuminated.
This is a good place to separate “included parts” from “smart setup accessories.”
| Accessory | Best for | Do you always need it? |
|---|---|---|
| Carry case or hard case | Transporting frame, graphic, lights, and hardware safely. | Yes, for repeated events. |
| Stabilizer feet | Keeping freestanding displays upright and steady. | Usually, unless the display mounts into a larger booth system. |
| Replacement SEG graphic | Campaign updates, seasonal promotions, or damaged graphics. | No, but useful for frequent exhibitors. |
| Approved extension cord | Reaching venue power when the outlet is not directly behind the display. | Often, depending on booth power placement. |
| Power strip | Managing multiple low-power devices in one booth area. | Sometimes, but confirm venue rules first. |
| Gloves and cleaning cloth | Keeping fabric and frame clean during setup. | Recommended. |
| Printed setup checklist | Helping first-time teams avoid missed steps. | Recommended for every event. |
If you’re planning a full booth instead of one display, use a layout tool before ordering. PrintDrill’s Trade Show Booth Layout Planner can help you think through where the lightbox, counter, table, product display, and visitor path should go. A lightbox works best when it’s placed where people can see it clearly from the aisle, not where it gets blocked by a table or staff member.
What common setup mistakes should you avoid?
Most SEG setup mistakes are not dramatic. They’re small things that create a visible problem at the end. The frame is slightly out of square. The light connector wasn’t clicked in. The fabric was inserted from one side instead of balanced from the corners. The booth power was ordered, but the outlet ended up behind a counter. None of these sound serious until the display is lit and everyone can see the issue.
Here are the mistakes worth avoiding.
| Common mistake | What happens | Recommended fix |
|---|---|---|
| Installing the fabric before testing lights | You may discover dark sections after the graphic is fully installed. | Test all LEDs before seating the graphic all the way around. |
| Starting the graphic from one corner and moving around the frame | The fabric can pull unevenly and create wrinkles. | Start with all four corners, then centers, then fill the remaining edges. |
| Not checking frame alignment | The graphic may feel too tight or loose even if it was printed correctly. | Confirm corners and connectors are fully seated before installing fabric. |
| Forgetting power requirements | The lightbox may be assembled but not usable when the show opens. | Confirm electrical service, outlet location, and cable routing before setup day. |
| Blocking the lightbox with furniture | Your best visual asset becomes hard to see from the aisle. | Place counters and tables slightly forward or to the side. |
| Packing graphics carelessly after the show | The next setup may include wrinkles, dirt, or edge damage. | Fold or roll the graphic as recommended and keep it in a clean protective bag. |
If-Then mistake prevention rules
- If the booth opens the next morning, do your light test the day before, not five minutes before doors open.
- If your team has never assembled the display, do a practice setup before shipping it to the event.
- If your booth includes a monitor or demo station, plan power for the full booth, not just the lightbox.
- If your lightbox sits behind a counter, check whether the bottom third of the graphic is hidden from aisle view.
- If the graphic has a lot of small text, step back 10–15 feet and see what people can actually read.
That last point matters more than people think. Backlighting makes graphics brighter, but it doesn’t fix cluttered design. If your display is packed with tiny product images, long taglines, QR codes, icons, and contact details, the lightbox may just make the clutter more visible.
If you need a simpler booth message, pair the lightbox with supporting pieces like a retractable banner stand, a product counter, or printed handouts. Let the lightbox carry the main brand message, then use nearby materials for the details.
PrintDrill’s SEG Setup Flow: What order should your team follow?
Here’s a practical setup flow your team can follow on show day. This is not meant to replace the product’s official instructions. It’s the real-world order that keeps most teams from making avoidable mistakes.
- Stage the parts first. Lay out frame pieces, connectors, feet, power supply, LED components, graphics, and hardware before assembly.
- Build the frame square. Connect the frame carefully and check that corners are fully seated.
- Attach stabilizer feet or supports. Don’t wait until the display is already upright and awkward to handle.
- Check lighting before closing the display. Connect LED cables and power supply, then turn the lights on briefly.
- Install the SEG graphic from corners first. Seat all four corners, then centers, then remaining edges.
- Stand and position the display. Move it carefully into the final booth location.
- Do an aisle-view test. Step into the aisle and check visibility from the direction people will actually walk.
- Take a phone photo. This reveals glare, wrinkles, shadows, and blocked messaging faster than staring at the booth from two feet away.
The phone photo test is underrated. Your booth may look fine when you’re standing inside it, but visitors see it from the aisle, usually while walking. Take a photo from 10–20 feet away. If the main message isn’t clear in that photo, simplify the layout or reposition the booth elements.
For accessibility and readability, the W3C accessibility principles are a helpful reminder that content should be perceivable and understandable. That applies to booth graphics too. High contrast, clear hierarchy, and readable text help real people, not just search engines or designers.
What should be on your SEG lightbox setup checklist?
A setup checklist sounds basic, but it can save a show. The best checklist is not a generic packing list. It should match how your team actually sets up the display, from unpacking to power test to final photo check.
Use this checklist before every event.
| Checklist item | Before leaving for event | During setup | Final check |
|---|---|---|---|
| Frame pieces | Confirm all labeled pieces are packed. | Check corners and connectors. | Make sure frame is square and stable. |
| Fabric graphic | Inspect for stains, damage, or wrong artwork. | Install corners first, then centers. | Check wrinkles and edge seating. |
| LED lights | Confirm lights and connectors are packed. | Connect before fully installing graphic. | Look for dark spots or uneven brightness. |
| Power supply | Pack adapter, cable, and backup if available. | Plug in and test safely. | Confirm cable is hidden but accessible. |
| Feet or stabilizers | Confirm all feet and hardware are included. | Install before final positioning. | Check wobble or leaning. |
| Tools and accessories | Pack gloves, cloth, step stool, small tools, zip ties. | Use as needed during assembly. | Return everything to the kit. |
| Booth placement | Review floor plan and power location. | Position lightbox for aisle visibility. | Take a photo from the aisle. |
If you’re sending a team that didn’t order the display, print the checklist and put it in the case. Don’t assume the person setting it up will know what the display is supposed to look like. Include a rendering, product photo, or booth layout image if you have one.
What most exhibitors get wrong about SEG lightbox setup
The biggest mistake is thinking setup is only about assembly. It’s not. Setup is really about presentation. A technically assembled lightbox can still underperform if the graphic is unreadable, the display is blocked, the lights aren’t tested, or the booth layout sends people past the message too quickly.
Here’s what we’ve seen with smaller exhibitors. They don’t usually need more stuff. They need the right few pieces working together. A bright SEG lightbox at the back of the booth, a simple counter near the aisle, and a clear product message can work better than five separate banners competing for attention.
The quiet detail that makes a lightbox work better is restraint. Use the brightness to highlight a clear message, not to cram in every service, product, phone number, certification, social handle, and QR code. People walking the aisle should understand what you do in a few seconds.
Use the lightbox for:
- Your main brand message.
- A strong product or service visual.
- A short positioning statement.
- A clear category cue, such as “Custom Coffee Roasting,” “Dental Practice Marketing,” or “B2B Packaging Solutions.”
Use other booth elements for:
- Detailed features.
- Pricing conversations.
- QR codes.
- Lead capture.
- Samples and brochures.
If you’re still deciding whether to use a lightbox or a simpler backdrop, compare the goal. For a basic local event, a custom vinyl banner or fabric backdrop may be enough. For a trade show where your booth has to compete visually from the aisle, a lightbox can give the brand a more polished presence.
What are the key takeaways before setting up an SEG lightbox?
The setup itself is not hard, but it rewards preparation. The teams that have the smoothest setup are not always the most experienced. They’re the ones that sort parts early, test lighting before closing the frame, install graphics evenly, and check the booth from the aisle before the show opens.
- Most portable SEG lightboxes are tool-free or minimal-tool systems, but you should still bring a small setup kit.
- Two people are recommended for most 10 ft SEG lightbox displays.
- A simple 10 ft lightbox may take about 20–45 minutes to assemble, while larger SEG booths can take one hour or more.
- Install the SEG graphic from the corners first, then the centers, then the remaining edges.
- Test LED lights before the fabric graphic is fully installed.
- Confirm booth power, outlet location, cord rules, and venue electrical requirements before the event.
- Take a final phone photo from the aisle to catch wrinkles, glare, blocked messaging, or poor placement.
FAQ
Q: How long does it take to assemble an SEG lightbox display?
A: A simple 10 ft SEG lightbox usually takes about 20–45 minutes with two people. Larger modular SEG booths can take 1–3 hours depending on size, lighting, and layout.
Q: Do SEG lightboxes require tools?
A: Many portable SEG lightboxes are tool-free or minimal-tool systems. Some models may still require a small Allen key, screwdriver, or included hardware for feet, corners, or connectors.
Q: Can one person set up an SEG display?
A: One experienced person may be able to set up a smaller SEG display, but two people are recommended for most 10 ft lightboxes. It’s safer, faster, and helps keep the fabric graphic evenly tensioned.
Q: How do you install SEG graphics without wrinkles?
A: Start by pressing the silicone edge into all four corners. Then insert the center point of each side and work toward the remaining open areas. Don’t install the graphic in one continuous direction around the frame.
Q: What power does an SEG lightbox need?
A: Most portable LED lightboxes use plug-in power supplies, but exact requirements depend on the display. Always check the product label, confirm venue power, and order electrical service if the show requires it.
Q: Should you test the lights before installing the graphic?
A: Yes. Test the LEDs before the graphic is fully installed. It’s much easier to fix a loose connector or power issue while the frame is still open.
Q: What accessories should I bring for SEG setup?
A: Bring gloves, a clean cloth, small tools, extra hardware, approved power accessories, a step stool for tall displays, and a printed setup checklist. These small items can save a lot of time on setup day.
Q: Can I reuse the same SEG lightbox frame with new graphics?
A: Yes, in most cases the frame can be reused and the fabric graphic can be replaced. This is useful for seasonal campaigns, new product launches, or updated trade show messaging.
Need help choosing or setting up the right SEG display?
If you’re planning a trade show booth, event display, showroom backdrop, or branded activation, the easiest next step is to match the display to the space first. A lightbox can look fantastic, but only when the size, layout, power plan, and graphic message all work together.
PrintDrill can help you choose the right SEG lightbox display, prepare your artwork, and think through setup before the display reaches the venue. That way, setup day feels planned instead of rushed.
